Jinan Upgoal Mechanical Equipment Co.,Ltd
| Payment Terms | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
| Supply Ability | 200 sets/month |
| Delivery Time | Within 7 working days |
| Packaging Details | One plywood case, 930*900*1650mm, 160kg |
| Maximum output laser power | 20W, Raycus |
| Wave length of laser | 1064nm |
| Marking scope | 110*110mm |
| Laser sources | Fiber module |
| Laser Head | High speed scanning head |
| The minimum focus facula diameter | 20μm |
| Minimal character | 0.01mm |
| Control system | Original Ez cad controller with USB port |
| Marking depth | 0.01-5mm( depends on different materials) |
| Cooling method | Force-air Cooling |
| Power supply | AC 110V+10%50/60Hz, single phase or AC110V |
| Process Material | All kinds of metal and part of Non-metal Materials |
| Brand Name | UPGOAL |
| Model Number | UG-20FM |
| Certification | CE |
| Place of Origin | Jinan City, Shandong Province, China |
View Detail Information
Explore similar products
Fiber Laser Marking Machine for Bearing Marking 20W
Portable Fiber Laser Marking Machine for Metal Materials Marking
Mini Type Fiber Laser Marking Machine for Logo Marking
Handheld Type Metal Fiber Laser Marking Machine
Product Specification
| Payment Terms | T/T, L/C, Western Union, MoneyGram, D/A, D/P | Supply Ability | 200 sets/month |
| Delivery Time | Within 7 working days | Packaging Details | One plywood case, 930*900*1650mm, 160kg |
| Maximum output laser power | 20W, Raycus | Wave length of laser | 1064nm |
| Marking scope | 110*110mm | Laser sources | Fiber module |
| Laser Head | High speed scanning head | The minimum focus facula diameter | 20μm |
| Minimal character | 0.01mm | Control system | Original Ez cad controller with USB port |
| Marking depth | 0.01-5mm( depends on different materials) | Cooling method | Force-air Cooling |
| Power supply | AC 110V+10%50/60Hz, single phase or AC110V | Process Material | All kinds of metal and part of Non-metal Materials |
| Brand Name | UPGOAL | Model Number | UG-20FM |
| Certification | CE | Place of Origin | Jinan City, Shandong Province, China |
Application
Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.
Features
1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.
2. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.
3. Marked graph and characters is permanent , will not regression due to friction.
4. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.
5. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
6. One piece design of control cabinet and marking table, small cover area.
7. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.
8. Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can use SHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
| Maximum output laser power | 20W, Raycus |
| Wave length of laser | 1064nm |
| Marking scope | 110*110mm |
| Laser sources | Fiber module |
| Laser Head | High speed scanning head |
| The minimum focus facula diameter | 20μm |
| Minimal character | 0.01mm |
| Control system | Original EzCad controller with USB port |
| Marking depth | 0.01-5mm( depends on different materials) |
| Marking line width | 0.01-0.1mm |
| Marking speed | ≤7000mm/s |
| Laser repetition frequency | 20kHz~80kHz |
| Cooling method | Force-air Cooling |
| Power supply | AC 110V±10%,50/60Hz, single phase or AC 220V±10%,50/60Hz, single phase |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| Process Material | All kinds of metal and part of Non-metal Materials |
| Certificate | CE/FDA |

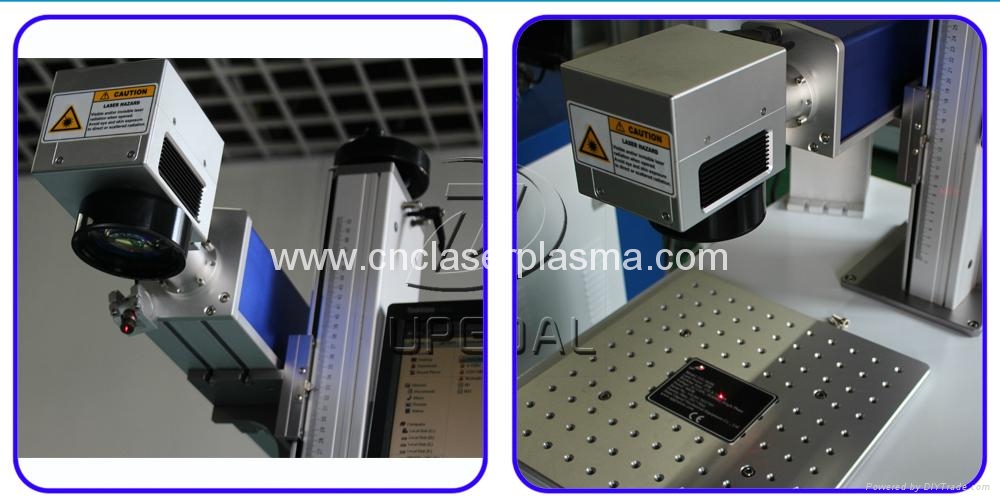

Marking head

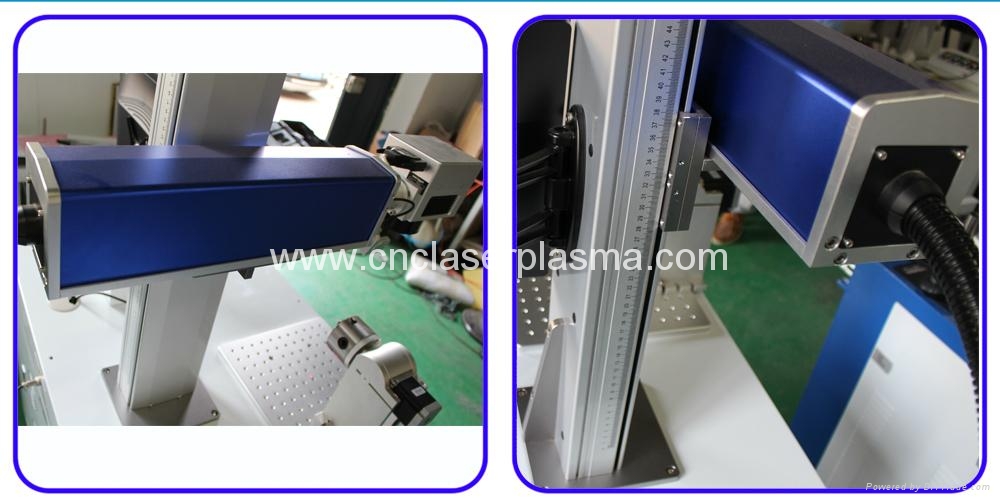

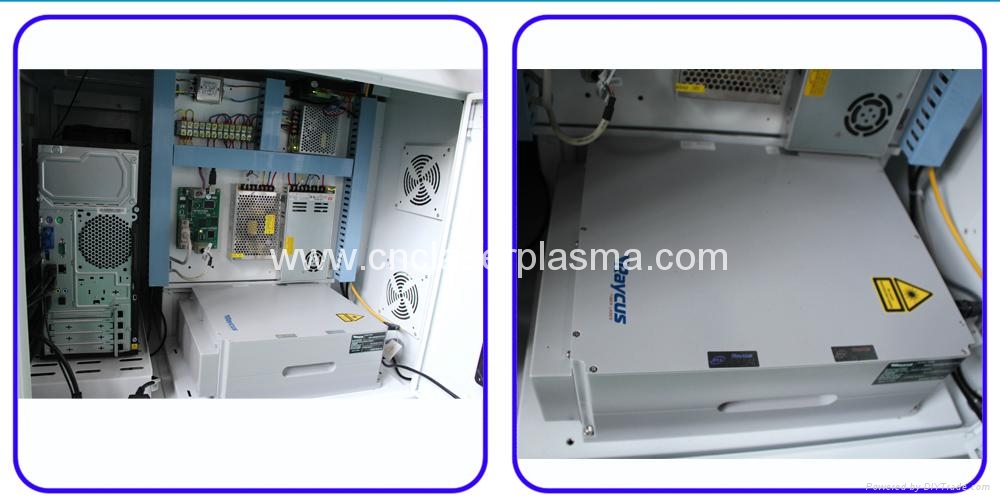

Raycus fiber laser optical bench

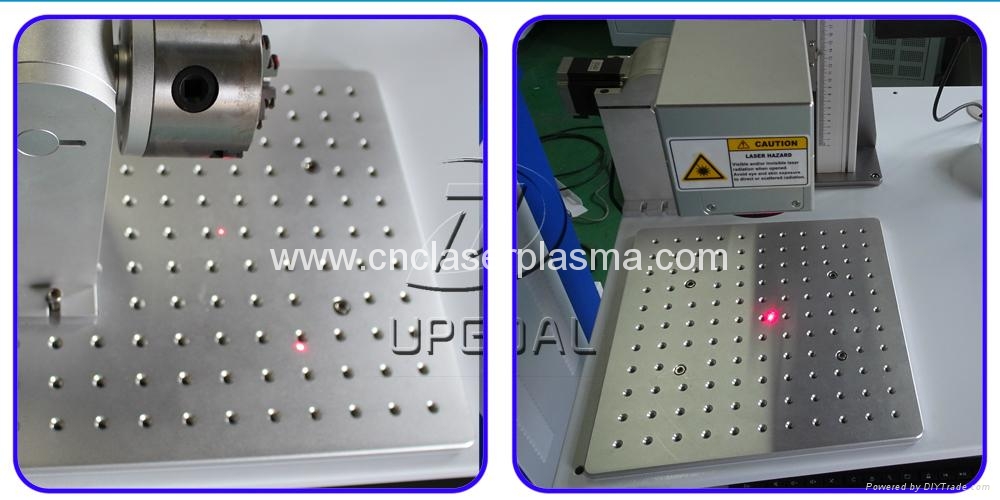

Double red dot positioning

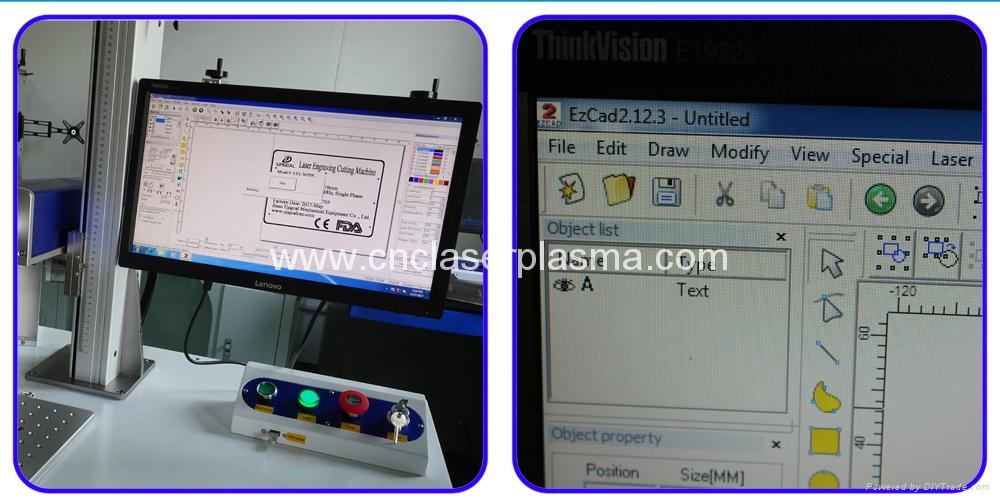

Original EzCad software

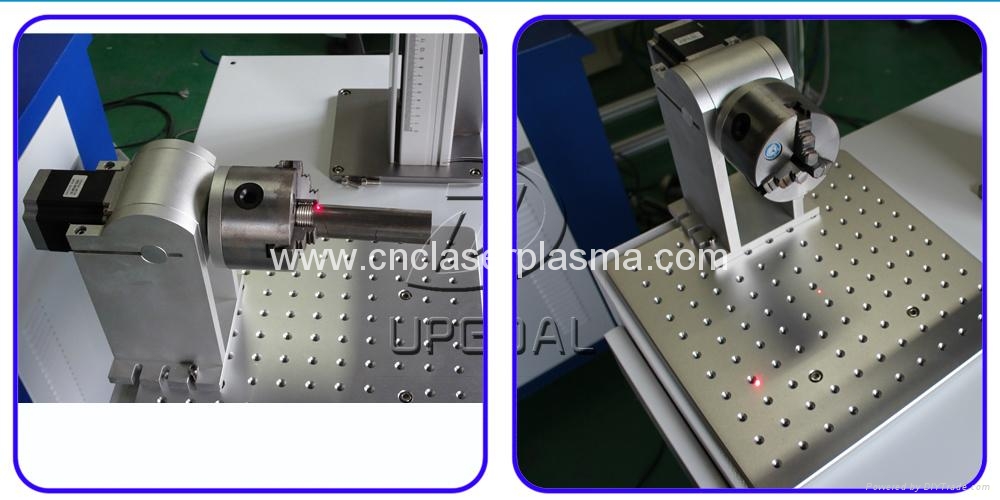

Rotary axis, diameter 80mm
Control cabinet
Lenovo desktop computer, windows 7, 32 or 64 bits, English( or other language)

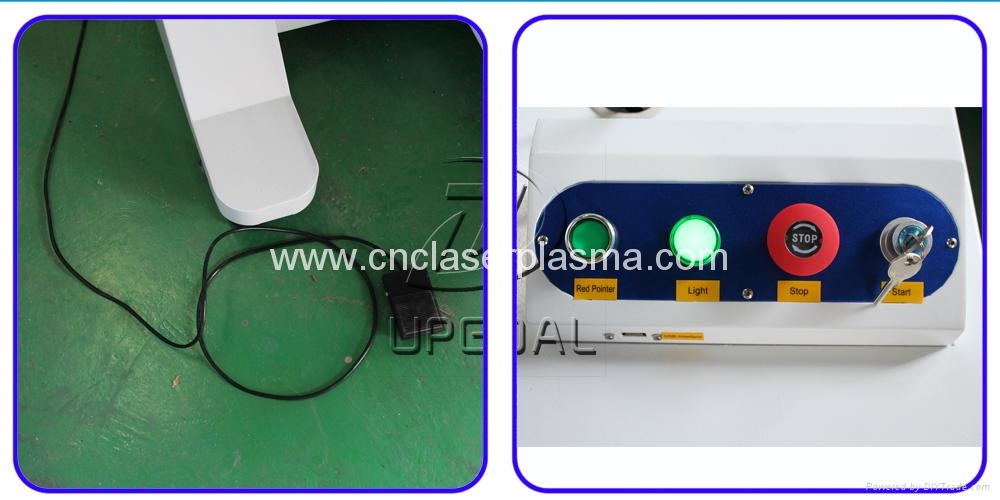

Foot switch & power switches

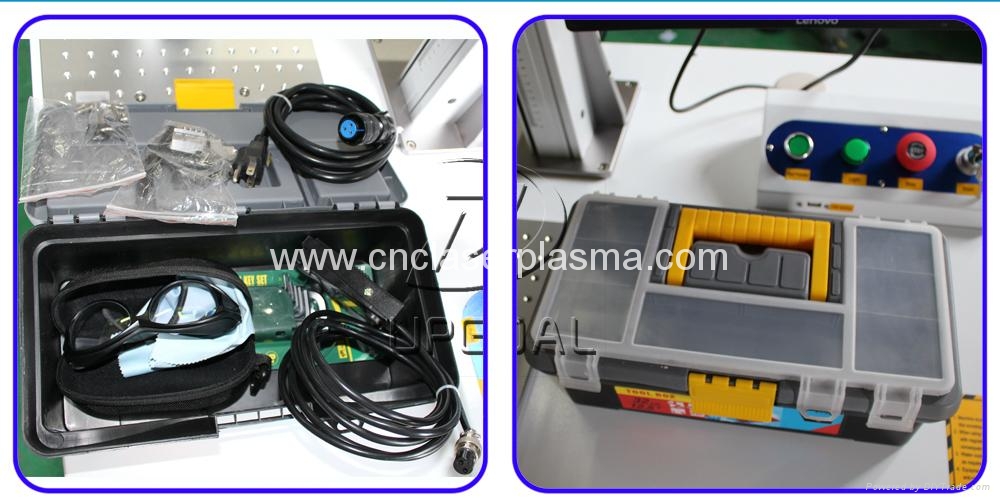

Accessories
Packing: one plywood
Samples
https://www.youtube.com/watch?v=MYD2nAbor7U&lc=z132itujytiwsnsvx23hffwohuebxnrqo04
https://www.youtube.com/watch?v=2tlpPZk7Mqg
For more information, just feel free to contact us!
